The Vertex VMS (Vertical Measuring System) is a key part of our comprehensive product range, offering a unique solution in the field of Digital Height Gauges.
Supported by a UKAS Certificate of Calibration, the Vertex VMS is the most advanced digital height gauge available on the market today.
Our Height Gauge Range Includes:
• VMS250S - Static (On a dedicated granite base) – Ideal for batch measurement
• VMS250 - Perfect for small-scale, detailed work where space is limited
• VMS800 - Our versatile mid-range option for everyday measurement tasks
• VMS1000 - Enhanced precision for more demanding applications
• VMS1200 - Robust design for workshop and manufacturing environments
• VMS1500 - Our premium option for maximum range and precision

-
UK Designed & Manufactured
-
Supports Both 1D and 2D Measurement
-
Does Not Require Error Correction
-
Supported by a UKAS Certificate of Calibration
-
Patented Air Bearing Design
Book Your Personal Demonstration Today
To arrange a detailed demonstration of our Digital Height Gauge with one of our technical specialists, please use the button below. Our team will contact you to schedule a convenient time to showcase the gauge's capabilities and discuss your specific measurement requirements.
Precision Engineering with Unparalleled Accuracy
Eley Metrology Digital Height Gauges are the pinnacle of precision measuring technology, designed and manufactured in the UK to exacting standards. Our digital height gauges combine advanced engineering with innovative features to deliver unmatched accuracy and reliability in both 1D and 2D measurement applications.
Advanced Air Bearing Technology
We are very proud of our unique air-bearing system, which sets our height gauges apart from every competitor in the marketplace. Air bearings are applied to both the base and the Z-axis carriage, ensuring exceptional smoothness and precision in every measurement. This innovative approach allows the gauge to glide effortlessly with minimal friction, preventing wear and significantly extending the operational life of your equipment.

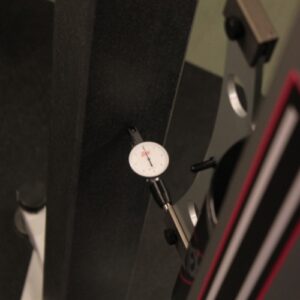

The air bearings utilised for the counterbalance deliver outstanding stability during measurement, eliminating the vibrations and inconsistencies that plague conventional systems. With the squareness of front and side planes maintained within a tolerance of 5.0 microns, our digital height gauge provides the superior precision necessary to ensure your company produces high-quality products and parts.
Intelligent Probing System
Your measurement requirements demand consistent accuracy, which is why we've engineered our motorised probing operation to be driven by a contactless eddy current clutch. This sophisticated system delivers exceptionally smooth functionality while allowing precise control over measurement parameters.
The pneumatic locks integrated into the counterbalance provide secure positioning during critical measurements, eliminating the risk of unexpected movement or drift. With adjustable probe contact pressure set at 40 grams, our digital height gauge offers the perfect balance between accurate measurement and component protection.
Innovative Features as Standard
Eley Metrology Digital Height Gauges come equipped with a dual probe facility as standard, providing you with versatile measurement options without requiring additional purchases. Our unique probe location and securing system ensure reliable operation in even the most demanding measurement scenarios.
The orbital "Hole in the wall" display presents critical measurement data with exceptional clarity, making it easy to read values from any angle. For those requiring physical records of measurements, an optional integral printer is available, allowing for immediate documentation of results.
Battery Technology for Extended Operation
Utilising the latest rechargeable battery technology, our digital height gauges provide continuous usage that exceeds a normal shift duration. With a battery life of up to 10 hours, you can confidently undertake extensive measurement sessions without concern for power interruptions. This extended battery capacity makes our gauge ideal for use in environments where power sources may be limited or inconvenient to access.
Quality Assurance You Can Trust
All our digital height gauges are supported by a UKAS Certificate of Calibration, providing you with complete confidence in the accuracy and reliability of your measurements. Our patented system design represents our ongoing commitment to innovation in the field of precision measurement.
If you'd like more details about our digital height gauge or to arrange a demonstration, our experienced team of engineers is here to help.
Vertex VMS Digital Height Gauges FAQs
The Vertex VMS stands out for several reasons:
- It’s the only digital height gauge that doesn’t require error correction
- Features air bearings for smoothness and precision
- Offers both 1D and 2D measurement capabilities
- Comes with a dual-probe facility as standard
- Designed and manufactured in the UK
- Performance supported by a UKAS Certificate of Calibration

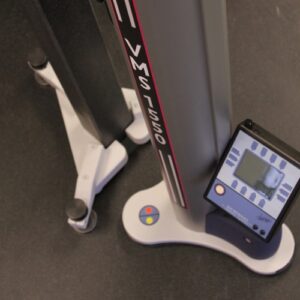

The Vertex VMS is available in four sizes:
- 800mm
- 1000mm
- 1200mm
- 1500mm
Yes, the Vertex VMS supports both 1D and 2D measurements. It offers comprehensive 1D measurement capabilities and additional 2D functionalities like rectangular and polar coordinates, alignment of features, and PCD (Pitch Circle Diameter) measurement.

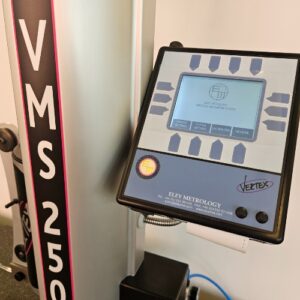

The Vertex VMS is designed with user-friendliness in mind. It features:
- An intuitive “orbital keypad” around the viewing area
- A clear, robust polycarbonate viewing screen
- Tactile keyboard for easy command input
- Ergonomic design for accessing multifunctional application software

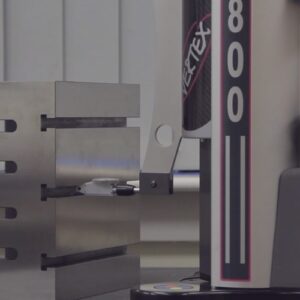

The Vertex VMS can perform a wide range of measurements, including:
- Heights and drops
- Internal and external diameters
- TDC (Top Dead Centre) and BDC (Bottom Dead Centre)
- Internal and external gaps
- Centre-to-centre measurements
- Squareness measurements from the front and side of the surface
- Scribing for layout work
The Vertex VMS comes pre-calibrated and doesn’t require error correction. However, we recommend following the user manual for proper setup and familiariSing yourself with the device’s features. Our team also provides comprehensive training and support to ensure you get the most out of your Vertex VMS.
To maintain your Vertex VMS:
- Keep it clean and free from dust and debris
- Store it in a controlled environment when not in use
- Regularly check and clean the air bearings
- Follow the maintenance guidelines in the user manual
- Schedule regular calibration checks with our service team
We recommend annual calibration checks to ensure ongoing accuracy. However, the frequency may vary depending on usage and your quality control requirements. Our service team can help you determine the best calibration schedule for your needs.
The Vertex VMS comes with a comprehensive warranty covering manufacturing defects. Please contact our sales team for specific warranty terms and conditions.
We offer full training and support from our experienced team at Eley Metrology.
Please get in touch with our sales team to get a personalised quote for the Vertex VMS. They’ll be happy to discuss your specific requirements and provide pricing information tailored to your needs.
Yes, the Vertex VMS is designed to work with a variety of granite surface plates. For optimal performance, we recommend using it with our Crown Windley range of granite surface plates, which are known for their flatness and stability. However, it can be used with any high-quality granite surface plate that meets the necessary flatness specifications.
